Features
It can be raised to make it easy to take noodles and refill, which greatly improves the efficiency. Timing setting in the range of 0-30 minutes, equipped with high-quality stainless steel noodle bucket, reinforced noodle kneading hook and noodle bar, compact and reasonable in structure, the noodle kneading bucket and noodle hook rotate at the same time, and the noodle kneading is even and thorough, using chain type Drive, low working noise.
Safety protection: (safe state protection device, barrel cover shutdown protection device, emergency stop switch design) (24V safety switch) (casters) (optional).
Production Features

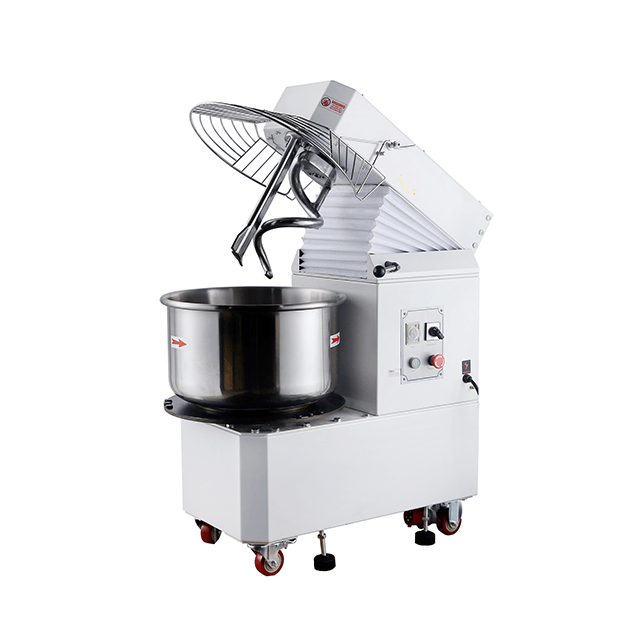

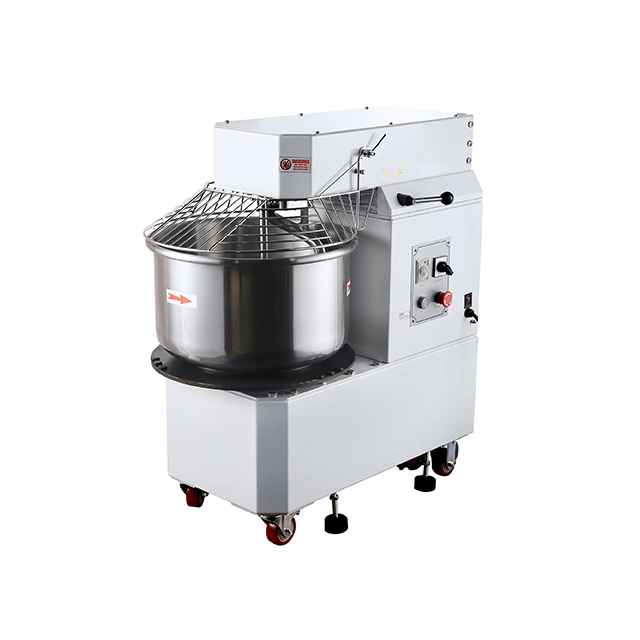

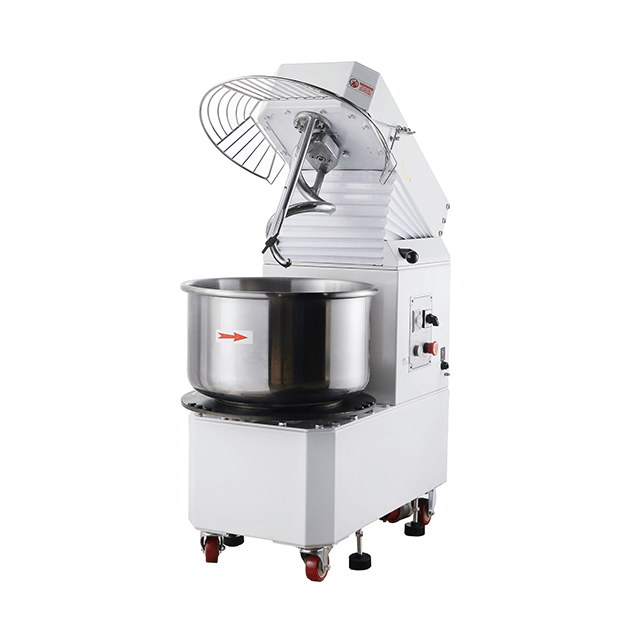

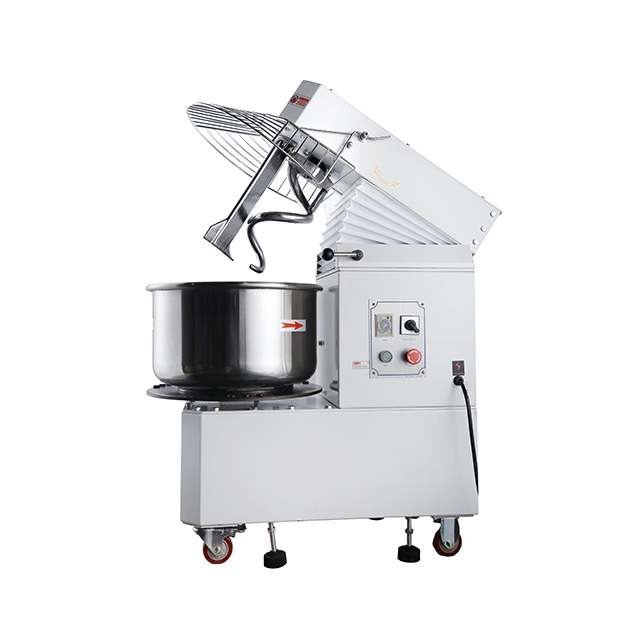

AS-HTD20B, 20L head-up double-speed double-action dough mixer, the part that contacts the food is made of 304 stainless steel, the surface is sprayed with high temperature powder to prevent rust, and the belt is imported from Japan KO or South Korea Samsung.
It is convenient and quick to take out the barrel and change the barrel after raising the head.
Motor output power: 1.5/2.2KW, 380V.
Noodle drum speed: 18 r/min, noodle hook rotation speed: 90/160 r/min.
Open hood stop function. The head has a dust-proof net, the whole machine has 4 high-quality casters and 4 fixed feet, and has a 30-minute time control function.
The circuit of the whole machine adopts 24V low-voltage control to maximize the protection of electrical appliances, the fastest 7 minutes out of the dough.
Model | Bowl Capacity (L) | Voltage (V) | Power (KW) | Bowl Speed (r/min)
| Hook Speed (r/min)
| Flour Capacity (KG) | Packing Dimension (cm) |
AS-HTD20B |
20 |
380V/50HZ |
1.5/1.1 |
16/11 |
156/103 |
8 |
86*46*89 |
